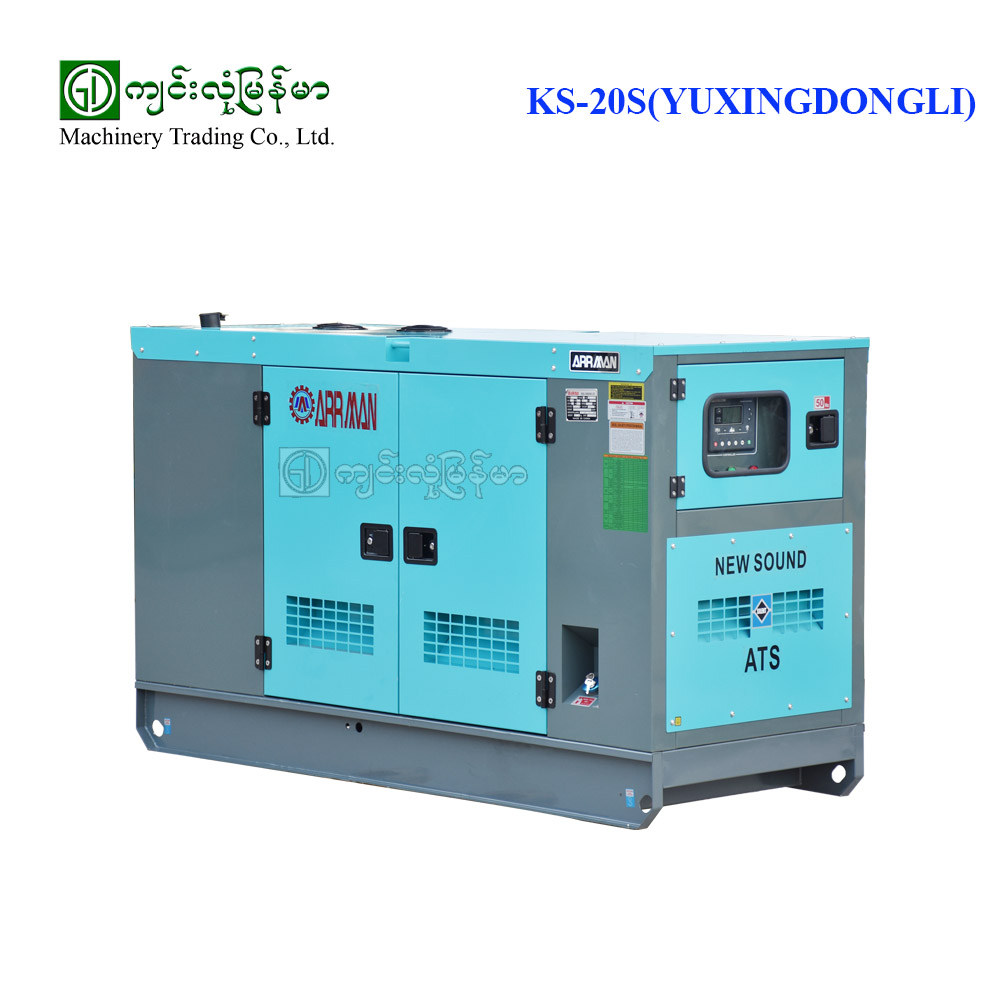

ARRMAN KS-20S YXRK4100D +GXG20KW 380V Sound Proof(YUXINGDONGLI)
Product by:
Diesel generators
Description
| ENGINE BRAND | WEIFANG YUXINGDONGLI |
| ENGINE MODEL | YXR K4100ZD |
| ENGINE TYPE | VERTICAL INLINE, DIRECT INJECTION, |
| 4-STROKE,WATER COOLED | |
| ENGINE POWER | 30 KW (40HP) |
| NUMBER OF CYLINDER | 4 CYLINDERS |
| BORE × STROKE | 100 ×115 MM |
| DISPLACEMENT | 3.61 L |
| COMPRESSION RATIO | 19:01 |
| IDLE SPEED | 700 R/MIN |
| RATED SPEED | 1500~1800 R/MIN |
| FUEL INJECTION SYSTEM | SEMI-AUTO |
| ENGINE CONTROLLER | SmartGen(HGM6110N) |
| FUEL CONSUMPTION | ≤258 G/KW-HR |
| (at rated condition) | |
| LUB; OIL CONSUMPTION | ≤2 G/KW-HR |
| OIL PAN CAPACITY | 10 L |
| FIRING ORDER | 1-3-4-2 |
| INTAKE SYSTEM | Naturally |
| COOLING SYSTEM | WATER COOLING |
| STARTING SYSTEM | ELECTRIC START |
| BATTERY | 12 VDC(12V80AH) |
| FUEL TANK | 90 L(20gal) |
| DYNAMO BRAND | FUAN MINDONG GEXIN |
| DYNAMO MODEL | GXG-20(184H) |
| DYNAMO TYPE | 4-POLE , BRUSHLESS , AVR |
| MAX; OUTPUT | 20 KW(37.5 KVA) |
| POWER FACTOR | 0.8 |
| VOLTAGE | 220 V/380V |
| MAX; CURRENT | 113 A |
| FREQUENCY | 50 Hz |
| TYPE OF AVR | SX-460 |
| MAX; EXCITING VOLT | 52.5 VDC |
| MAX; EXCITING CURRENT | 2.1 A |
| BREAKER | 100 A (3 terminal) |
| OVER ALL DIMENSION | 2020-920-1220 mm |
| WEIGHT(estimate) | 485 kg |
Product Code – dsg20amyxdl
Additional information
| Weight | 485 kg |
|---|---|
| Dimensions | 202 × 92 × 122 cm |
Brand Information
- ARRMAN
