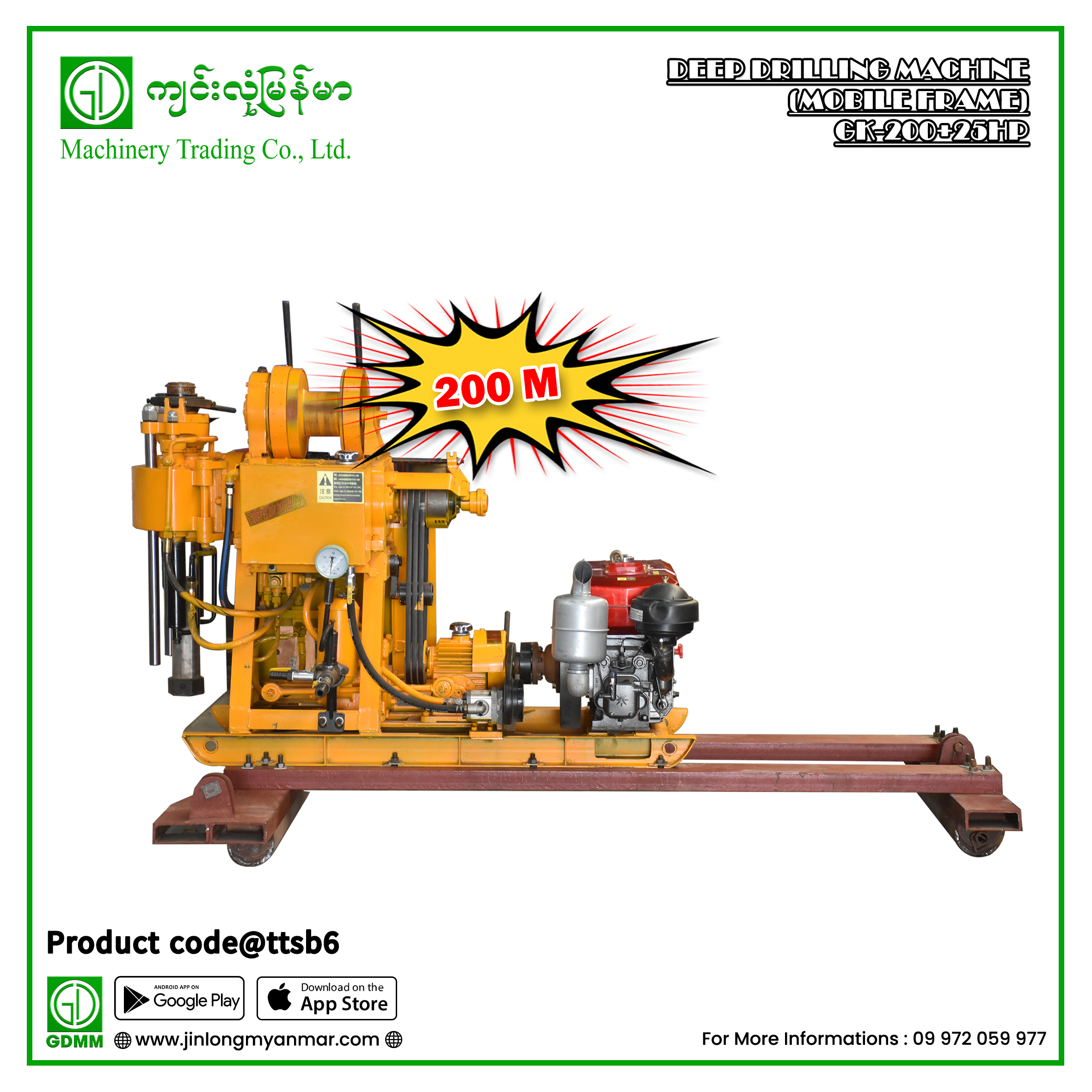

Deep Drilling Machine (Mobile Fame GK-200+25Hp)
Description
| Drilling Diameter | 75,91,110,130,150,300mm |
| Drilling Depth | 200,150,100,70,50,30 m |
| Drill pipe diameter | 50 mm |
| Vertical Shaft Speed | 71,182,310,790 r/min |
| Vertical axis stroke | 450 mm |
| Maximum feed force of vertical shaft | 15 KN |
| Maximum lifting capacity of vertical shaft | 25 KN |
| Maximum output torque of vertical shaft | 1.25 KN.m |
| Maximum lifting capacity (single rope) | 15 KN |
| Reel speed | 19,38,48,168 r/min |
| Diameter of the scroll | 140 mm |
| Wire rope diameter | 9.3 mm |
| Maximum wire length | 35 m |
| Type   of machine | diesel engine |
| Model | ZS1115 (25hp) |
| Power | 18.6 kw |
| Rated speed | 2200 r/min |
| Dimention | 2520x1700x1500 mm |
| Weigth | 535 kg |
Product Code-ttsb6
