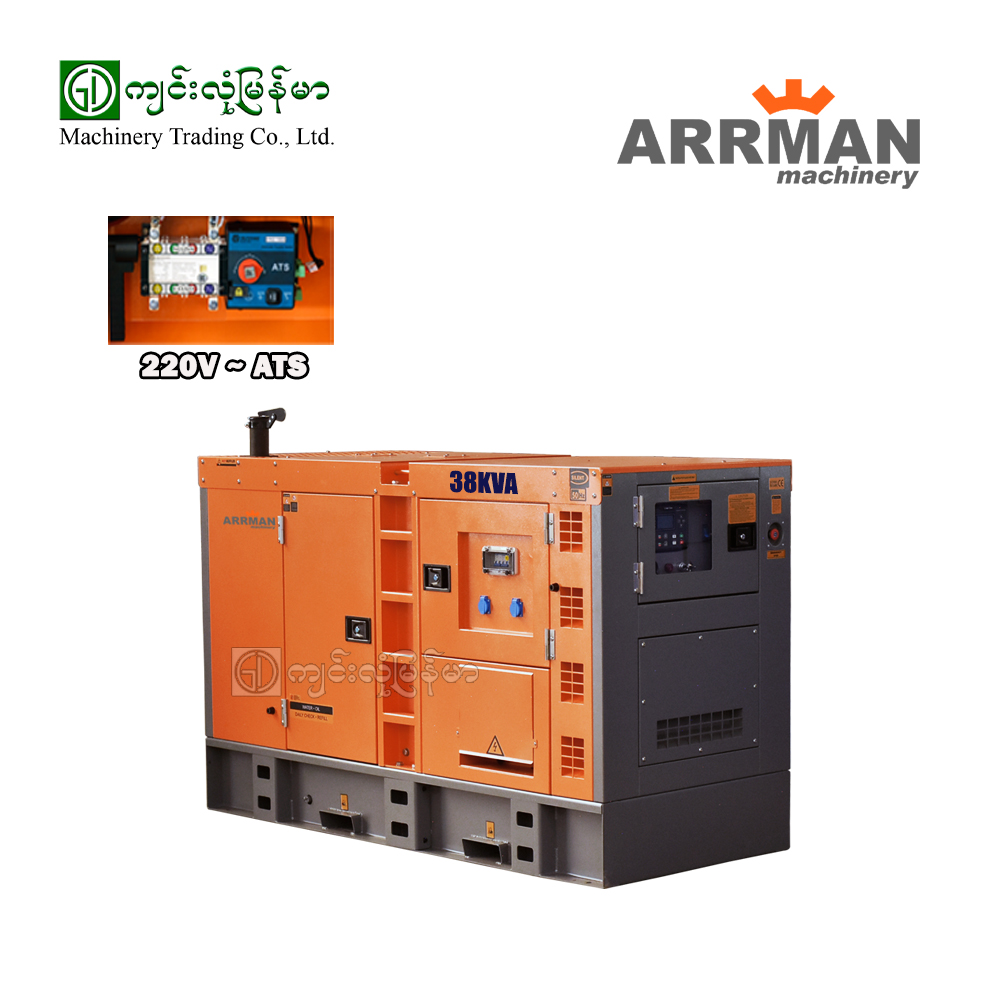

Diesel Generator Sound Proof ARRMAN GL38Y1 YANG DONG Y4105D +JDG224C 38KVA 220V (Built in ATS)
Product by:
Diesel Generator Sound Proof
Available on backorder
Description
| Genset model | GL38Y1 |
| Brand | GOLDLINK |
| Alternator | JDG224C(GXG) |
| Type of alternator | 4pole,brushless,AVR |
| Rated power(KVA) | 38 KVA |
| Rated power(KW) | 30 KW |
| Voltage | 220 VAC |
| Frequency | 50 Hz |
| Max; current | 137 A |
| Power Factor | 0.8 |
| Type of AVR | SX-460 |
| ATS system | SYK2-63A(Single phase) |
| Brand | YANG DONG |
| Engine model | Y4105D |
| Engine type | Vertical Inline,Direction Injection |
| 4-Stroke,Water Cooled | |
| Rated power | 38 KW |
| Bore x Stroke | 105 X 118 mm |
| Displacement | 4.1 L |
| Speed | 1500 r/min |
| Firing order | 1-3-4-2 |
| Compression ratio | 18:01 |
| Intake system | Natural |
| Cooling method | Forced watercooling |
| Starting method | Electric start |
| Battery | 12VDC(12V-60Ah) |
| Oil pan capacity | 10.46 L |
| Fuel tank capacity | 25 gal |
| Fuel consumption(full load) | 235 g/Kw.h |
| Brand | SmartGen |
| Model | HGM7120N |
| Overall length | 2210 mm |
| Overall width | 950 mm |
| Overall height | 1392 mm |
| Weight | 1200 kg |
Product code – dsg301gl
Additional information
| Weight | 1200 kg |
|---|---|
| Dimensions | 221 × 95 × 139.2 cm |
Brand Information
- ARRMAN
