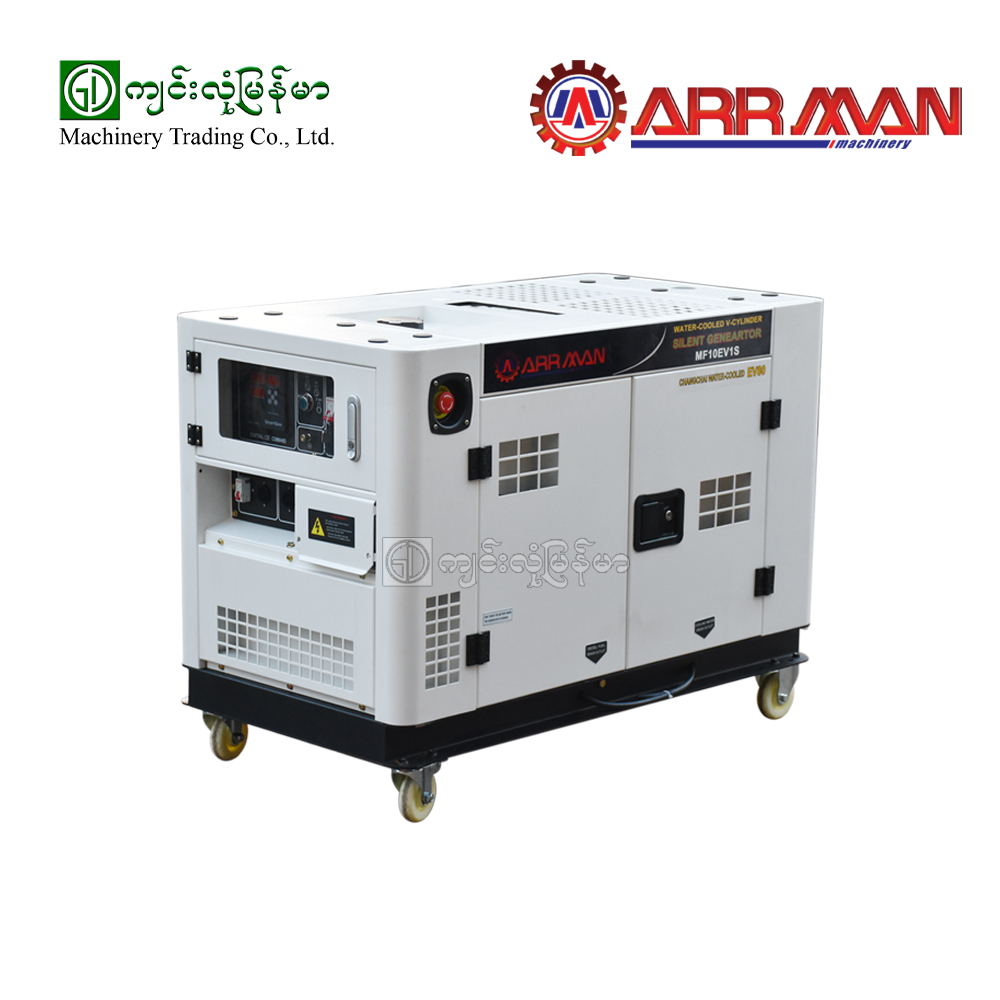

Diesel Soundproof Generator MF10EV1S
Product by:
Diesel Soundproof Generator
Description
| ENGINE MODEL | HP2V80 |
| ENGINE TYPE | V-TWINS, PRE COMBUSTION DIESEL, |
| 4-STROKE, WATER COOLED | |
| ENGINE POWER | 12 KW |
| NUMBER OF CYLINDER | 2 CYLINDERS |
| BORE × STROKE | Ø80 ×79 MM |
| DISPLACEMENT | 0.794 L |
| COMPRESSION RATIO | 17:01 |
| RATED SPEED | 3000 R/MIN |
| FUEL INJECTION SYSTEM | AUTO |
| ENGINE HEATING SYSTEM | GLOW PLUG(manual) |
| ENGINE CONTROLLER | SMARTGEN-HGM501 |
| FUEL CONSUMPTION | 0.52 GAL/HR |
| (at rated condition) | |
| OIL PAN CAPACITY | 2.27 L |
| FUEL TANK CAPACITY | 26 L(5.7 GALLON) |
| COOLING SYSTEM | PUMP CIRCULATING |
| STARTING SYSTEM | 12 VDC(12V36AH) |
| DYNAMO TYPE | 2-POLE , AVR |
| MAX; OUTPUT | 10 KW(12.5 KVA) |
| POWER FACTOR | 0.8 |
| VOLTAGE | 220 V |
| CURRENT | 45 A |
| FREQUENCY | 50 Hz |
| MAIN BREAKER | 50 A (double throw) |
| OVER ALL DIMENSION | 1210×670×895 MM |
| WEIGHT | 292 KG |
Product Code – dsg102am
Additional information
| Weight | 292 kg |
|---|---|
| Dimensions | 121 × 67 × 89.5 cm |
Brand Information
- ARRMAN
