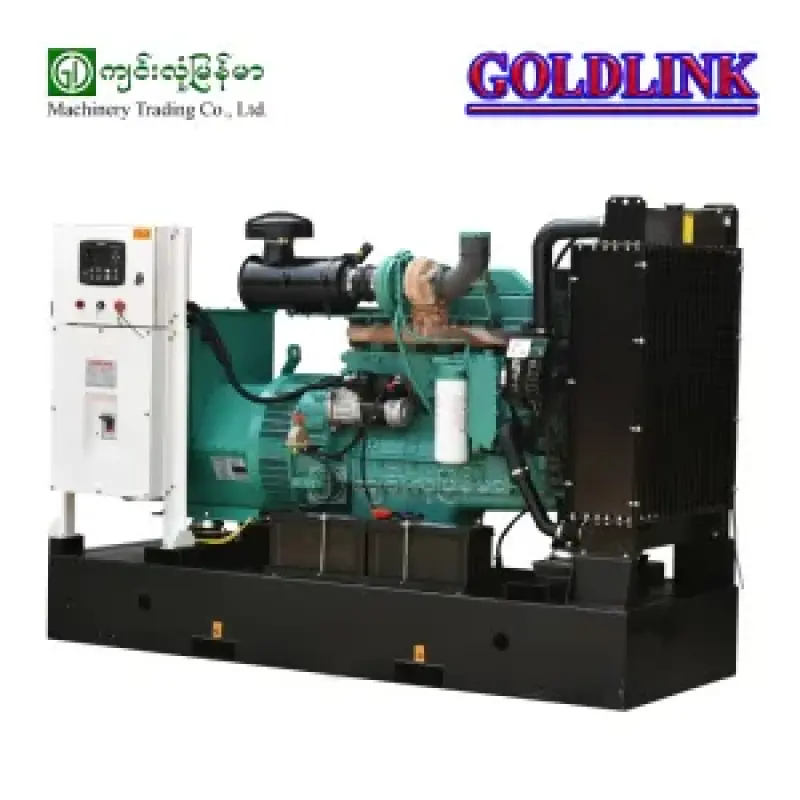

| Genset model | JL188C3 |
| Alternator | JDG274G(GXG) |
| Type of alternator | 4pole,brushlsess,AVR |
| Prime power | 188 KVA(150 KW) |
| Voltage | 220/380 VAC |
| Frequency | 50 Hz |
| Max; current | 227/394 A |
| Type of AVR | SX460 |
| Max; exciting voltage | 50 V |
| Max; exciting current | 3 A |
| Brand | Dongfeng Cummins |
| Engine model | 6CTA8.3-G2 |
| Engine type | Vertical Inline,Direction Injection |
| 4-Stroke,Water Cooled | |
| Prime power | 163 KW |
| Standby power | 180 KW |
| Bore x Stroke | 114 x 135 mm |
| Displacement | 8.3 L |
| Speed | 1500 r/min |
| Firing order | 1-5-3-6-2-4 |
| Compression ratio | 17.3 : 1 |
| Intake system | Turbo Charged |
| Fuel consumption | ≤ 216 g/kw.hr |
| Oil pan capacity | 23.8 L |
| Starting method | Electric start |
| Battery | 24VDC(12V-100Ah) |
| Controller | HGM-7120N(SmartGen) |
| Fuel tank | 80 gal |
| Dimension | 2370x960x1670 mm |
| Weight | 1550 kg |
